Part 7 | Angle Adjustment Plate
Description
The Angle adjustment plate is the part that is shaped like a half-circle and enables you to place your m-station on 12 different angles. You can distinguish the two angle adjustment plates via the graphic located on the side of them. Numbers T7, C7 and A7 have a graphic that reads: Play. Track. Improve.

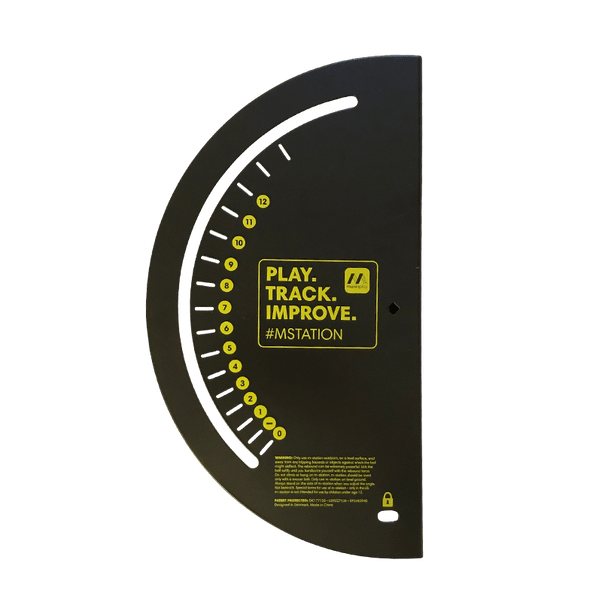

Angle adjustment plate (Play. Track. Improve.)
Check which m-station you have before you select the angle adjustment plate needed for your specific m-station model below.
- T7 Angle Adjustment Plate for m-Station Talent
- C7 Angle Adjustment Plate for m-Station Club
- A7 Angle Adjustment Plate for m-Station Academy
Pictures of the parts listed above can be found in the parts and tools overview in the assembly manuals for m-station Talent, Club and Academy.
How to assemble?
The angle adjustment plate is mounted on the back of part 3 (T3, C3 or A3, depending on the model), with 4 screws: T16, C16 or A16.
View the video manual or check chapters 7 and 8 in the Assembly Manual.
If you have any questions, do not hesitate to contact us.
